Simonswerk Tectus Te 540 3d A8 Fr Concealed Hinge - 100kg Capacity

From £185.59 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

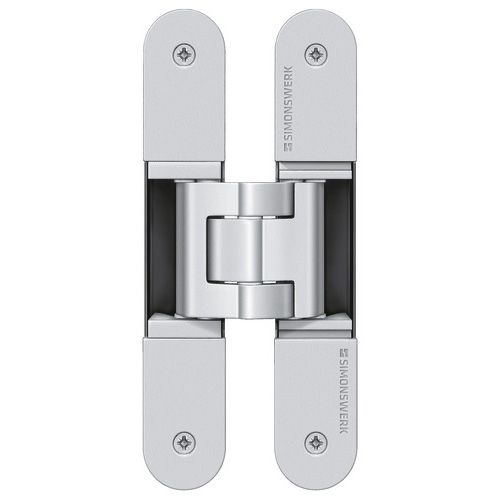

The Simonswerk Tectus TE 540 3D A8 FR Concealed Hinge is designed for unrebated heavy-duty doors with claddings up to 8 mm on both sides.

As part of the Tectus FR collection, they have an integrated intumescent kit. Whilst maintaining all routing dimensions and optical features of the Tectus, they provide the perfect basis for use on fire-resistant door elements. In case of a fire, the intumescent kit swells, sealing the door around the hinges, thereby protecting against fire and smoke escaping into a neighbouring room.

Available in a wide range of finishes to mix and match with your cupboard or cabinet interiors; black, brass, bronze, chrome, nickel and stainless steel finishes are available.

Product features:

  • Cladding up to 8 mm.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.
  • Opening Angle: 180 Degree
  • Load Capacity: 100kg

Suitable for:

  • Timber door leaf.
  • Unrebated.
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof


  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 540 3D A8 FR.

Installation tools

  • Universal milling frame
  • Template 5 250680 5 - step 1
  • Template 5 250681 5 - step 2
  • Template 5 250682 5 - step 3
  • Template 5 250687 5 - step 3 (without cladding)


  • TE 540 3D FZ - fixing plate TECTUS, for casing frames
  • TE 540 3D A8 SZ - receiver TECTUS, for steel frames
  • TE 540 3D ST - receiver TECTUS, for steel doors
  • Cover plate set TECTUS A8 radius

Supplied in SINGLES complete with fixings


Attributes Value
Load capacity 100,0 kg
Overall length 200,0 mm
Width (door part) 32,0/37,0 mm
Width (frame part) 32,0/37,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Finish Options


1 – 2 Weeks

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
