Description

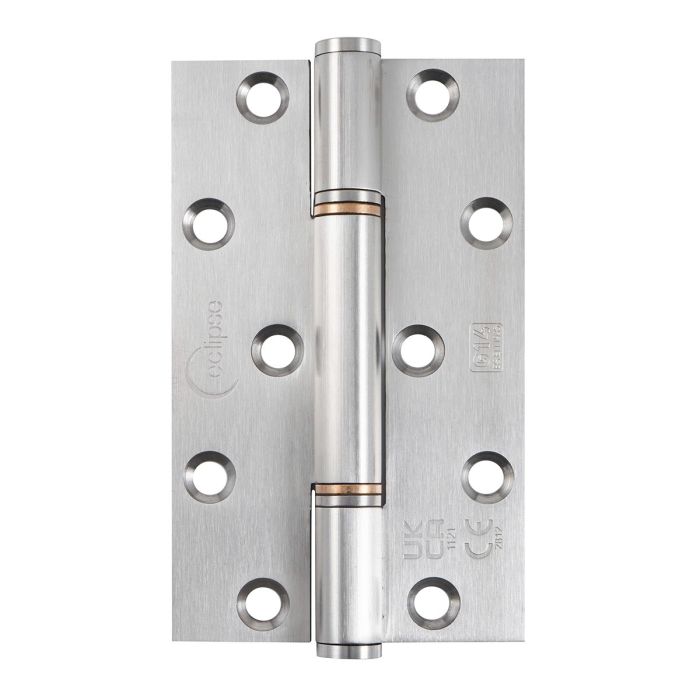

The Eclipse Grade 14 Stainless Steel Thrust Bearing Hinges are engineered for high-traffic commercial and public buildings where strength, durability and smooth operation are essential. Manufactured from SUS 201 stainless steel with precision thrust bearings, they minimise friction under heavy loads while meeting the highest European performance and fire safety standards. Suitable for doors weighing up to 160kg, these hinges provide reliable performance for timber and steel fire door installations.
Key Features:
- Eclipse Grade 14 thrust bearing hinges
- Manufactured from SUS 201 stainless steel
- Size: 127 x 76 x 3mm
- Precision thrust bearing construction for smooth, low-friction operation
- BS EN 1935 performance tested to Grade 14
- Tested to 200,000 operating cycles
- Suitable for doors up to 160kg total door mass
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 2812 and UKCA 1121 approved
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Supplied complete with fixings
- Pack quantity: 2 hinges (1 pair)
Dimensions
127x76x3mm
Delivery
2-3 Day Delivery.
NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
