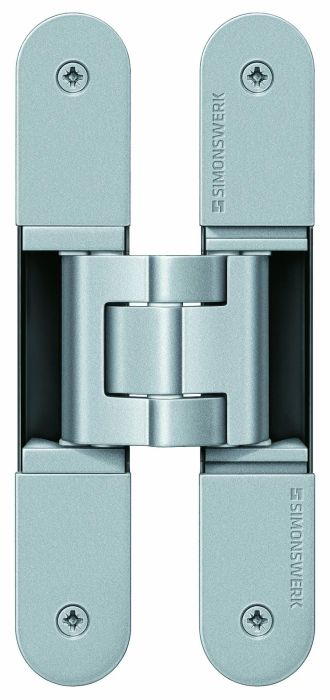

Simonswerk Tectus Te 640 3d Fr Concealed Hinge - 200kg Capacity

From £219.65 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

The Simonswerk Tectus TE 640 3D FR Concealed Hinges with integrated intumescent kit for unrebated high-performance heavy-duty doors.

Product Features:

  • With integrated intumescent kit.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated high performance heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.

Suitable for:

  • Type of door leaf: Timber
  • Rebate: Unrebated
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Note:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Installation tools:

Combinations:

  • TE 640 3D FZ - fixing plate TECTUS, for casing frames
  • TE 640 3D SZ - receiver TECTUS, for steel frames
  • TE 640 3D ST - receiver TECTUS, for steel doors

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 640 3D FR.

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 200,0 kg
Overall length 240,0 mm
Width (door part) 32,0 mm
Width (frame part) 32,0 mm
Cutter diameter 24,0 mm
Opening angle 180°
