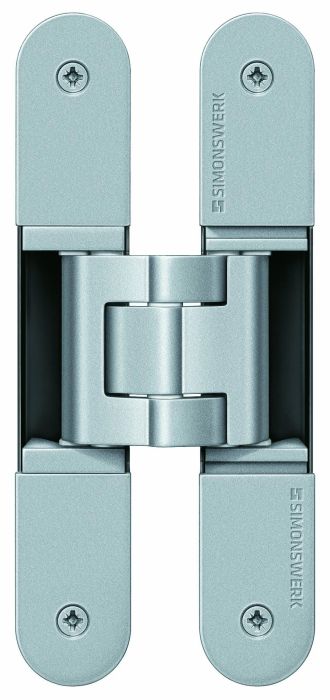

Simonswerk Tectus Te 640 3d A8 Fr Concealed Hinge - 160kg Capacity

From £234.94 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

The Simonswerk Tectus TE 640 3D A8 FR Concealed Hinge with integrated intumescent kit for un-rebated high-performance heavy-duty doors with claddings up to 8 mm on both sides.

As part of the Simonswerk Tectus FR collection, they have an integrated intumescent kit. Whilst maintaining all routing dimensions and optical features of the Tectus, they provide the perfect basis for use on fire-resistant door elements. In case of a fire, the intumescent kit swells, sealing the door around the hinges, thereby protecting against fire and smoke escaping into a neighbouring room.

Product features:

  • With integrated intumescent kit.
  • Cladding up to 8 mm.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated high performance heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.

Suitable for:

  • Type of door leaf: Timber.
  • Rebate: Unrebated.
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Note:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 640 3D A8 FR.

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 160,0 kg
Overall length 240,0 mm
Width (door part) 32,0/37,0 mm
Width (frame part) 32,0/37,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Finish Options

Delivery

1 – 2 Weeks

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
