Simonswerk Tectus Te 340 3d Fr Concealed Hinge

From £115.37 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

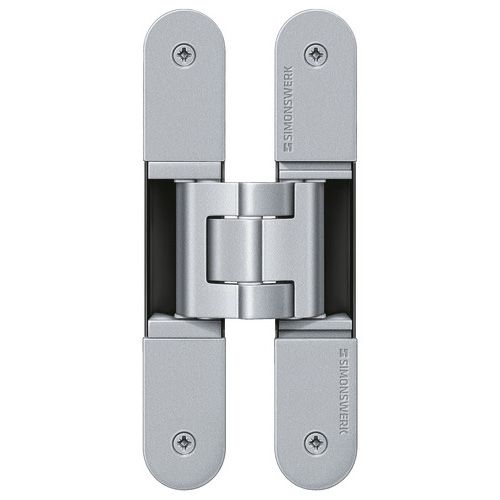

The Simonswerk Tectus TE 340 3D FR Concealed Hinge is a concealed mortice hinge with an integrated intumescent kit for un-rebated residential and heavy-duty doors. Crafted from aluminium and zinc diecast (jamb and sash component), with maintenance-free slide bearing technology. Intended for use on doors in escape routes with requirements for fire resistance and smoke control out of wood and metal.

Part of Simonswerk FR Collection of Concealed Hinges that have an integrated intumescent kit that protects against fire and smoke escaping into a neighbouring room. In case of a fire, the intumescent kit swells, sealing the door around the hinges.

For fitting there is a milled in frame element and screw-fitted with 4 screws in and milled in leaf element and screw-fitted with 4 screws 13-001600-PR01 of 23/05/2013.

Simonswerk Tectus TE 340 3D FR Concealed Hinge Product features:

  • With integrated intumescent kit.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated residential and heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.
  • Load Capacity: 80 Kg.
  • Opening Angle: 180°
  • Fire resistance
  • Smoke resistance

Notes:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m)
  • With an opening position of 180° the door may have to be fixed additionally.

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 340 3D FR

Installation tools

  • Universal milling frame
  • Template 5 250693 5 - step 1
  • Template 5 250694 5 - step 2

Combinations

  • TE 340 3D FZ/1 - fixing plate TECTUS, for casing frames
  • TE 340 3D SZ - receiver TECTUS, for steel frames
  • TE 340 3D ST - receiver TECTUS, for steel doors

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 80,0 kg
Overall length 160,0 mm
Width (door part) 28,0 mm
Width (frame part) 28,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Finish Options

Delivery

1 – 2 Weeks

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
