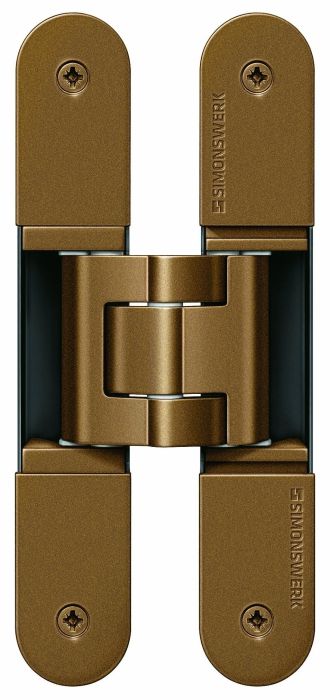

Simonswerk 100kg Capacity Tectus TE 540 3D A8 Concealed Hinge

From £168.62 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Share

Description

The Simonswerk Tectus TE 540 3D A8 Concealed Hinge is designed for unrebated heavy-duty doors with claddings up to 8 mm on both sides. Available in a wide range of finishes to mix and match with your cupboard or cabinet interiors; black, brass, bronze, chrome, nickel and stainless steel finishes are available.

Product features:

  • Cladding up to 8 mm.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.
  • Opening Angle: 180 Degree
  • Load Capacity: 100kg

Suitable for:

  • Timber door leaf.
  • Unrebated.
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Notes:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Installation tools

  • Universal milling frame
  • Template 5 250680 5 - step 1
  • Template 5 250681 5 - step 2
  • Template 5 250682 5 - step 3
  • Template 5 250687 5 - step 3 (without cladding)

Combinations

  • TE 540 3D FZ - fixing plate TECTUS, for casing frames
  • TE 540 3D A8 SZ - receiver TECTUS, for steel frames
  • TE 540 3D ST - receiver TECTUS, for steel doors
  • Cover plate set TECTUS A8 radius

Supplied in SINGLES complete with fixings

Dimensions

Technical details

Attributes Value
Load capacity 100,0 kg
Overall length 200,0 mm
Width (door part) 32,0/37,0 mm
Width (frame part) 32,0/37,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Finish Options

Delivery

1 – 2 Weeks
