Simonswerk Tectus Te 540 3d Concealed Hinge

From £152.52 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

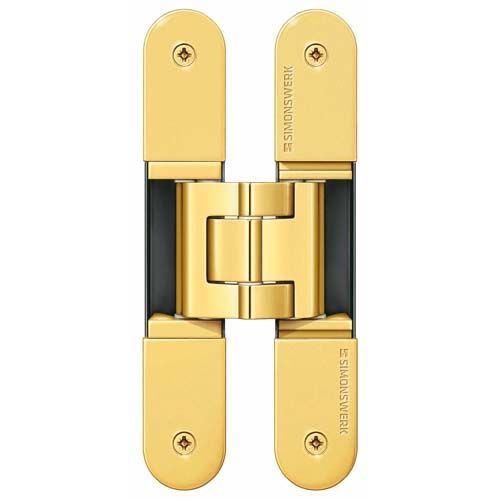

Simonswerk Tectus TE 540 3D Concealed Hinge for unrebated heavy-duty doors, with a load capacity up to 120kg. Available in a range of attractive surface finishes; stainless steel effect, polished brass, dark or light bronze, matt chrome and matt or polished nickel.

Simonswerk Tectus completely concealed hinge range for high-quality interior and functional heavy-duty doors. Designed for applications ranging from high-quality interior doors to heavy-duty doors with special requirements in terms of load capacity and performance.

Product features:

  • Completely concealed hinge system
  • For timber, steel or aluminium frames
  • For unrebated heavy-duty doors
  • Sideways closed hinge body for a homogeneous mortise appearance
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
  • Maintenance-free slide bearings

Suitable for:

  • Type of door leaf: Timber
  • Unrebated Doors
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Please see Simonswerk instructional video for fitting Tectus Hinges.

Supplied in SINGLES complete with fixings


Technical details

Attributes Value
Load capacity 120,0 kg
Overall length 200,0 mm
Width (door part) 32,0 mm
Width (frame part) 32,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Finish Options
