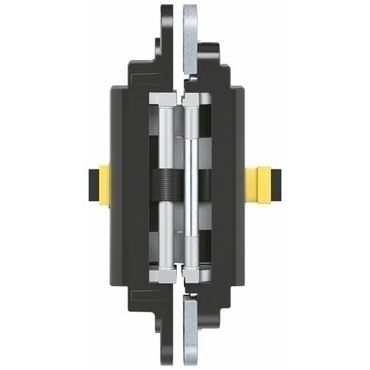

Simonswerk Tectus Te 640 3d Energy Concealed Hinge - 200kg Capacity

From £490.61 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Share

Description

Simonswerk Tectus TE 640 3D Energy Concealed Hinge are designed for fitting and operating electronic components in high-quality heavy-duty un-rebated doors, where the safe and permanent energy transfer is decisively important. The Tectus Energy Hinges enables permanent energy transfer, without compromising on the design aspect of surface-flush appearances.

Cutting-edge energy transfer:

Tectus Energy Hinges secure the door leaf and permanently provides energy from the side of the frame without weakening the door or frame geometry. The technology provided together with Tectus Energy offers compatibility with all standard versions of locks and fittings, while preserving all the technical and visual features of the TECTUS hinge range. The door leaf receives a guaranteed and permanent energy supply from the frame, without the geometry of the door or frame being weakened.

The completely concealed hinge system TECTUS enables unrebated doors to be completely flush and therefore integrated into rooms designed with straight lines. When closed the door will remain visible, with an invisible hinge system. TECTUS hinges carry load capacities up to 300 kg, enables an opening angle of 180 degrees and can be used on timber, steel and aluminium frames. Three-dimensional adjustment and maintenance-free slide bearing technology are used for high-quality interior doors and functional heavy-duty doors.



Simonswerk TE640 Tectus Hinge Product features:

Product features

  • With permanent energy transfer
  • Individual connection adapter options
  • Completely concealed hinge system
  • For timber, steel or aluminium frames
  • For unrebated high-performance heavy-duty doors
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)
  • Maintenance-free slide bearings

Detailed Product Information Sheets and Videos:

Installation tools

  • Universal milling frame
  • Template 5 250659 5 - step 1
  • Template 5 250689 5 - step 2
  • Template 5 250939 5 - additional routing Energy

Combinations

  • TE 540 3D FZ - Tectus fixing plate for casing frames
  • TE 540 3D SZ - Tectus receiver for steel frames
  • TE 540 3D ST - Tectus receiver for steel doors
  • Adapter 1 TECTUS Energy
  • Universal adapter TECTUS Energy
  • Round cable 3m TECTUS Energy
  • Round cable 10m TECTUS Energy

Supplied in SINGLES complete with fixings

Finish Options

Delivery

1 – 2 Weeks

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
