Description

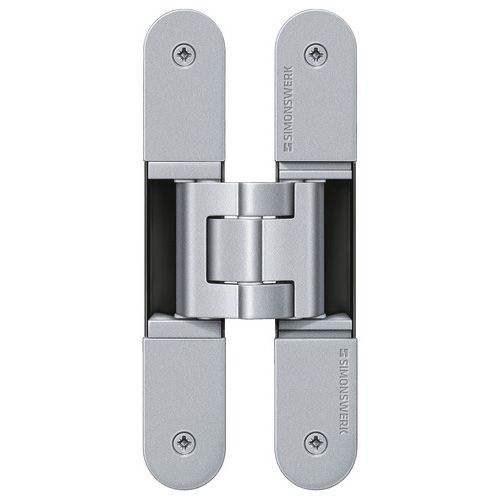

The Simonswerk Tectus TE 340 3D Energy Concealed Hinge is a concealed mortice hinge, created using aluminium and zinc diecast (jamb and sash component) with maintenance-free slide bearings and a milled in frame element and screw-fitted with 4 screws in and milled in leaf element and screw-fitted with 4 screws. Available in matt nickel, matt chrome and satin stainless steel effect.
Simonswerk Tectus TE 340 3D Energy Concealed Hinge Product Features:
- Permanent energy transfer
- Individual connection adapter options.
- Completely concealed hinge system.
- For timber door leaf
- For aluminium, blind, block, casing or steel frames
- For unrebated doors.
- With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
- Maintenance-free slide bearings.
- Load Capacity: 80Kg
- Burglar resistance
- Fire resistance
- Smoke resistance
Part of Simonswerk world-class Tectus hinge system that has cutting-edge energy transfer capability for unrebated and rebated flush residential doors. The Tectus hinges are a completely concealed hinge system. Flush mounting is a stylistic principle that exudes minimalism and involves precise technology and perfection.
The Simonswerk Tectus Energy collection has been designed to provide permanent energy transfer, without compromising on the design aspect of a surface-flush appearance. Energy transfer is crucially important in the installation and operation of electric components in high-quality doors. The Simonswerk Tectus Energy Hinges combine design, function and technology in an exemplary way and allows for fitting and operating electronic components in high-quality heavy-duty doors, the safe and permanent energy transfer is decisively important. Tectus Energy secures the door leaf and permanently provides energy from the side of the frame without weakening the door or frame geometry. Tectus Energy offers compatibility with all standard versions of locks and fittings, while retaining all technical and optical features of the Tectus product brand.
- Please Note: The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
- When ordering the accessories please consider: There are two connection adapters TECTUS Energy needed per hinge.
- With an opening position of 180° the door may have to be fixed additionally.
- Please see Simonswerk instructional video for fitting Tectus Hinges.
- Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 340 3D ENERGY.
Installation tools
- Universal milling frame
- Template 5 250693 5 - step 1
- Template 5 250694 5 - step 2
- Template 5 250939 5 - additional routing
Combinations
- TE 340 3D FZ/1 - fixing plate TECTUS and casing frames
- TE 340 3D SZ - Tectus receiver for steel frames
- TE 340 3D ST - Tectus receiver for steel doors
- Adapter 1 TECTUS Energy
- Universal adapter TECTUS Energy
- Round cable 3m TECTUS Energy
- Round cable 10m TECTUS Energy
Supplied in SINGLES complete with fixings
Dimensions
| Attributes | Value | |
| Load capacity | 80,0 kg | |
| Overall length | 160,0 mm | |
| Width (door part) | 28,0 mm | |
| Width (frame part) | 28,0 mm | |
| Cutter diameter | 24,0 mm | |
| Opening angle | 180° | |
| Wire cross section | 0,14 mm² | |
| Max. voltage | 50 V | |
| No. of wires | 16 | |
| Max. current | 0,8 A | |
