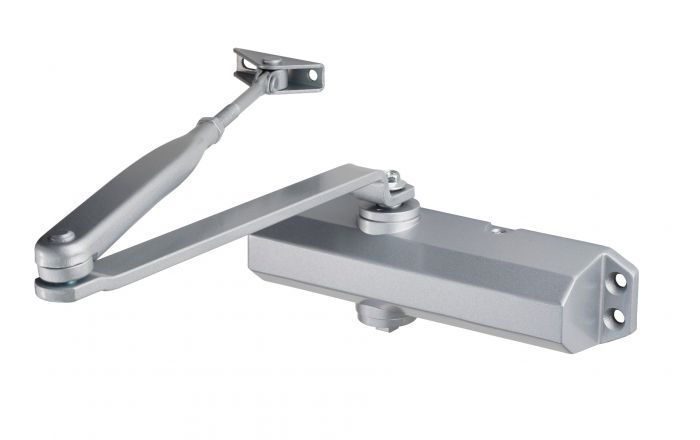

CDG420 is a template adjustable overhead door closer, EN 2 – 4, which is suitable for inward or outward opening doors up to 80kg in weight, and/or 1100mm wide.
It has been successfully tested in all installation applications to BS EN1154:1996, and covered by CE and Certifire accreditations. Suitable for use on timber fire doors, up to 120 minute rating. Includes a cover and Fig6 bracket as standard.
Available in Silver, Polished Nickel and Satin Nickel finishes.
Fitting Template To be printed A3 double sided. These need to be printed at precisely 1:1 scale. Do not fit to page size, print out at 100% scale on A3, with printer calibrated to A3 size. This is a template and must line up fully with the physical product.
Length - 224mm
Width - 50mm
Depth - 68mm
Arm Projection - 254mm
NEXT DAY DELIVERY (on orders placed before 1pm)
NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
Ask a question
Our experts will answer it
Hi. How do you adjust the closing speed of this door closer?
On the back of the closer there is a small dial that you need a screwdriver to turn. This dial adjusts the closing speed.
Answered 2 months ago
