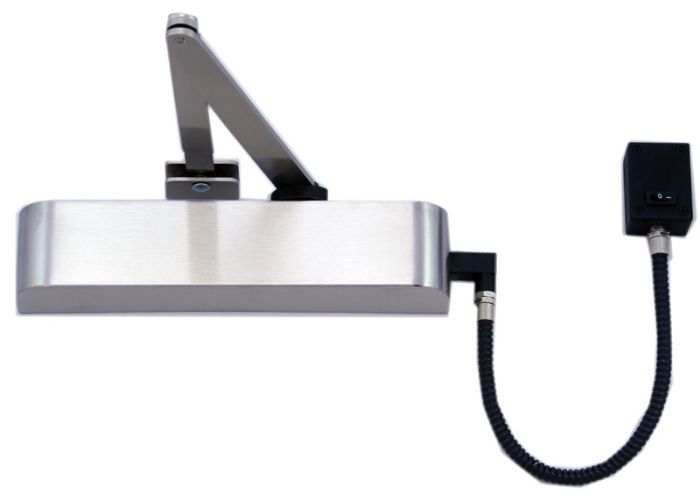

Boss Size 4 Hold Open / Swing Free Emag Overhead Door Closer Architectural Slimline - Ts7.004

From £253.66 Inc. VAT RRP £307.82 Inc. VAT

Delivery for this item is 2-3 Working Days

Secure CheckoutEncrypted Checkout



This is a completely universal Electro-Magnetic Overhead Door Closer</strong with all options in one unit. Suitable for all applications particularly those with public use.

  • EN Size - 4
  • Max Door Width/Weight – 1100mm/80Kg
  • Universal Application (Fig 1, 6 & 61)
  • Adjustable Sweep Speed
  • Adjustable Latch Speed
  • CE marked against EN1155
  • Certifire Approved
  • Included in successful fire test to EN1634
  • The Boss TS7.004 Overhead Emag has hold open and swing free functions making it suitable use in applications where ease of access is important and compliance with the requirements of The Equality Act


Full Specification

Closing Force; - EN Size 4
Door Size Max Width; - 1100mm
Weight; - 80kg
Body Dimensions; - Length 260mm - Width 48mm - Depth 48mm
Application; - Regular Fig.1 - Push Side Fig.6* - Transom Fig.61
Mechanism; - Rack and Pinion
Power Shoe Bracket; - No
Angle Of Opening; - 180
Non Handed; - Yes
Power Adjustment By Spring; - No
Power Adjustment By Position; - No
Adjustable Sweep Speed; - Yes
Adjustable Latch Speed; - Yes
Adjustable Backcheck; - No
Adjustable Delayed Action; - No
Guarantee; - 2 Years

(*Fig.6 Not included in Certifire approval)

Please see our Guide to Choosing the Correct Overhead Door Closer

Declaration of Performance PDF Click Here

Available in Silver Enamel, Satin Stainless Steel, Polished Stainless Steel.  Other finishes are available on request.

Supplied in SINGLES complete with bracket, screws and fixings.


Body Dimensions;

Length 260mm - Width 48mm - Depth 48mm

Finish Options


2 – 3 Working Days

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
