Description

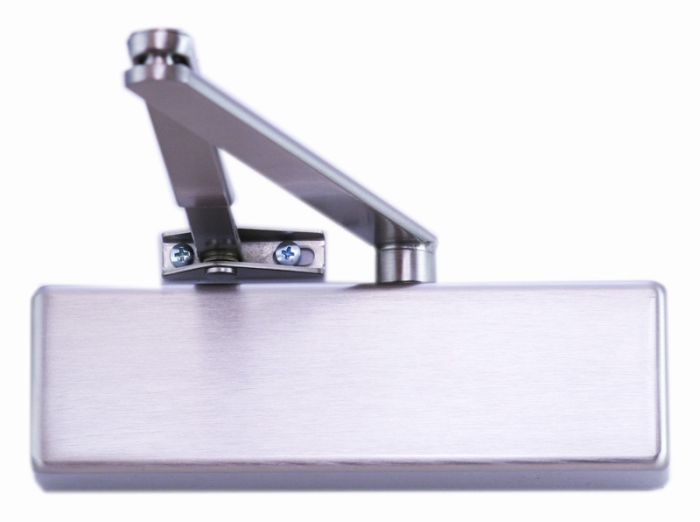

This is a stylish adjustable power Overhead Door Closer which is suitable for medium use general applications such as offices, accomodation and flat entrance doors.
- EN Size 2-4*
- Max Door Width/Weight – 950mm/60Kg
- Universal Application (Fig 1, 6 & 61)
- Adjustable Sweep Speed
- Adjustable Latch Speed
- Power Adjustable by Position
- Adjustable Backcheck Option
- CE marked against EN1154
- Included in successful fire test to EN1634
Full Specification
Closing Force; - EN Size 2-4*
Door Size Max Width; - 950mm
Weight; - 60kg
Body Dimensions; - Length 220mm - Width 59mm - Depth 42mm
Application; - Regular Fig.1 - Parallel Arm Fig.6 - Transom Fig.61**
Mechanism; - Rack & Pinion
Power Shoe Bracket; - Yes
Angle Of Opening; - 180
Non Handed; - Yes
Power Adjustment By Spring; - No
Power Adjustment By Position; - Yes
Adjustable Sweep Speed; - Yes
Adjustable Latch Speed; - Yes
Adjustable Backcheck; - No
Adjustable Delayed Action; - No
Guarantee; - 25 Years
(*Certifire approved at Size 3 only. **Not Certifire aproved at Fig. 61)
Please see our Guide to Choosing the Correct Overhead Door Closer
Fitting Instructions PDF Click Here
Declaration of Performance Click Here
Available in Silver Enamel, Satin Stainless Steel, Polished Stainless Steel, Polished Brass. Other colours on request.
Supplied in SINGLES complete with bracket, screws and fixings.
Dimensions
Body Dimensions;
Length 220mm - Width 59mm - Depth 42mm
Delivery
1 – 2 Working Days
NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
