Boss Size 2-3 Overhead Door Closer Cam Action Architectural Slimline - Ts6.224

From £141.40 Inc. VAT RRP £171.60 Inc. VAT

Delivery for this item is 2-3 Working Days

Secure CheckoutEncrypted Checkout

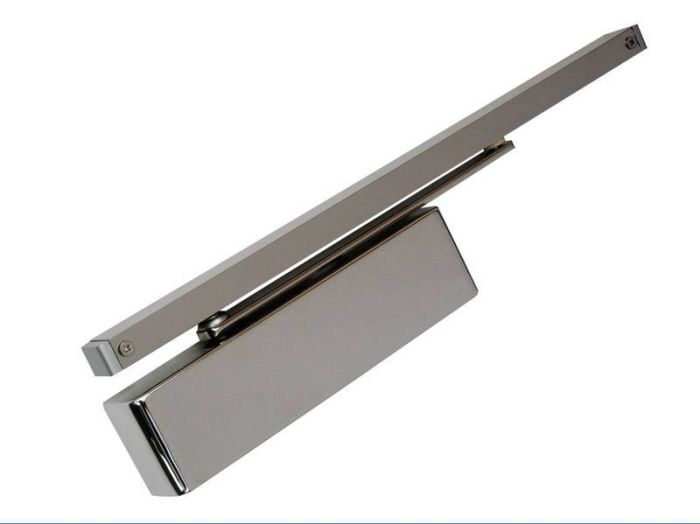

This is a high efficiency trus cam action slide arm Overhead Door Closer.  The slimline architectural design makes this a popular choice on high spec developments and is suitable for most applications particularly those with public use.

  • EN Size - 3
  • Max Door Width/Weight – 950mm/60Kg
  • Universal Application (Fig 1, 6 & 61)
  • Adjustable Sweep Speed
  • Adjustable Latch Speed
  • Power Adjustable by Spring
  • Adjustable Mechanical Backcheck
  • CE marked against EN1154
  • Included in successful fire test to EN1634
  • Has an opening force of 30N or less when fitted to a fire door (size EN3) measuring 803mm and above
  • optional size 2-4 by spring power


Full Specification

Closing Force; - EN Size 3*
Door Size Max Width; - 950mm
Weight; - 60kg
Body Dimensions; - Length 210mm - Width 52mm - Depth 36mm
Application; - Regular Fig.1 - Push Side Fig.6 - Transom Fig.61
Mechanism; - Cam
Power Shoe Bracket; - No
Angle Of Opening; - 110
Non Handed; - Yes
Power Adjustment By Spring; - Yes
Power Adjustment By Position; - No
Adjustable Sweep Speed; - Yes
Adjustable Latch Speed; - Yes
Adjustable Backcheck; - Yes
Adjustable Delayed Action; - No
Guarantee; - 25 Years

(*Optional Size 2-4 by spring adjustment)

Please see our Guide to Choosing the Correct Overhead Door Closer

Fitting Instructions PDF Click Here

Declaration of Performance Click Here

Available in Silver Enamel, Polished Brass, Satin Stainless Steel, Polished Stainless Steel.

Supplied in SINGLES complete with bracket, screws and fixings.


Body Dimensions;

Length 210mm - Width 52mm - Depth 36mm

Finish Options


2 – 3 Working Days

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
