Simonswerk Tectus Te 680 3d Fd Concealed Hinge - Matt Chrome Finish

SKU
TE680.3D.FD.124
£179.47 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

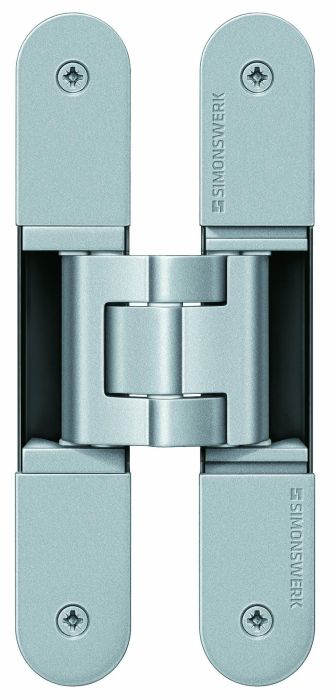

Simonswerk Tectus TE 680 3D FD Concealed Hinge for rebated timber entrance doors, up to 160kg.

Product features:

  • Concealed hinge system.
  • For rebated timber entrance doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • Comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,5 mm).
  • Continuous sealing system.
  • 18 mm overlap width.
  • Maintenance-free slide bearings.

Suitable for:

  • Type of door leaf: Timber
  • Rebate: Rebated
  • Type of frame: Blind frame, block frame

Note:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Installation tools

  • Ball bearing location routing jig TECTUS TE 680 3D FD
  • Routing jig TECTUS TE 680 3D FD
  • Template 5 251109 5 - door, overlap 21 mm and 22 mm
  • Template 5 251110 5 - door, overlap 23 mm and 24 mm
  • Template 5 251111 5 - door, overlap 25 mm, 26 mm and 27 mm
  • Template 5 251112 5 - door, overlap 21 mm
  • Template 5 251113 5 - door, overlap 22 mm and 23 mm
  • Template 5 251114 5 - door, overlap 24 mm and 25 mm
  • Template 5 251115 5 - door, overlap 26 mm
  • emplate 5 251116 5 - door, overlap 27 mm

Combinations:

  • Gasket DS 7435


Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 160,0 kg
Width (door part) 40,5 mm
Length (door part) 140,0 mm
Width (frame part) 30,0 mm
Length (frame part) 250,0 mm
Cutter diameter 20,0 mm
Opening angle 180°
