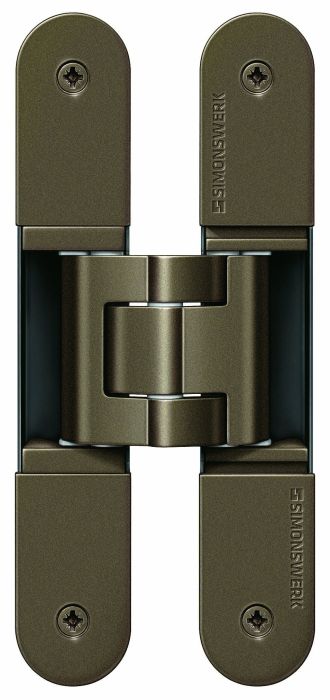

Simonswerk Tectus Te 640 3d A8 Concealed Hinge - 160kg Capacity

From £218.95 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

Simonswerk Tectus TE 640 3D A8 Concealed Hinge for unrebated heavy-duty doors with claddings up to 8 mm on both sides. Available in a wide range of finishes to mix and match with your cupboard or cabinet interiors; black, brass, bronze, chrome, nickel and stainless steel finishes.

Product features:

  • Cladding up to 8 mm.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.

Suitable For:

  • Type of door leaf: Timber
  • Rebate: Unrebated.
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Note:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 640 3D A8.

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 160,0 kg
Overall length 240,0 mm
Width (door part) 32,0/37,0 mm
Width (frame part) 32,0/37,0 mm
Cutter diameter 24,0 mm
Opening angle 180°
