Description

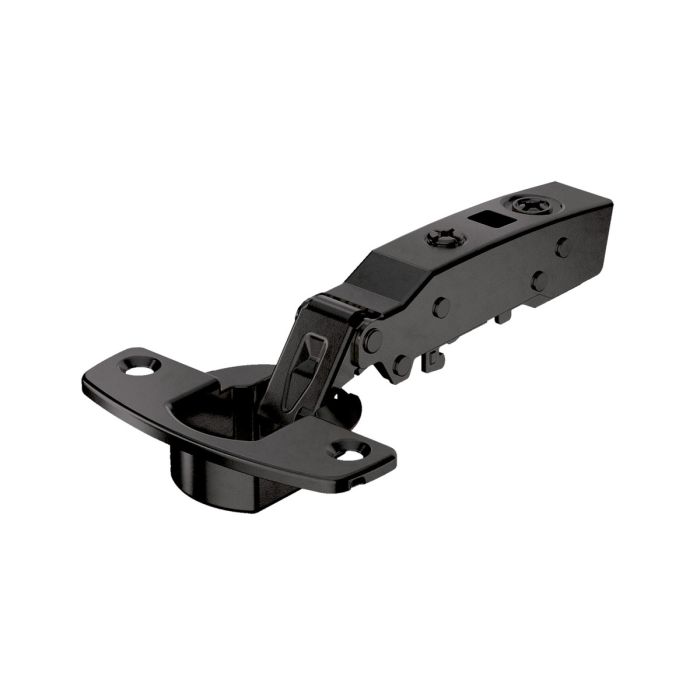

- Sensys 110° hinge
- With integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110 °
- For door thickness 15-24 mm
- Door mounting option overlay (B 12.5 mm)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- steel in obsidian black
Fitting: Hettich has full fitting instructions for Sensys fast assembly concealed Hinges. As well as visual depictions of the hinges with these installation notes. Also available from Hettich are cup and arm cover plates, ideal for situations in which attention to detail is paramount. The cover plates clip onto the hinge and tidy up the appearance. The cover plates are available to purchase in the associated products below.
Hettich Pro Decor is a family-owned company based in Kirchlengern Germany with a long history of interior innovation. The company is now one of the world's largest and most successful manufacturers of cupboard handles and furniture fittings. Despite the growing size and success of Hettich as a company, it remains family-owned and intimately customer-focused. The Hettich brand stands for consistent values: Quality, innovation and reliability.
Supplied in SINGLES.
Design | 90° construction |
Door type | Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm) |
User friendly features | with integrated silent system |
Door mounting option | overlay |
Opening angle | 110 ° |
Min. door thickness | 15 mm |
Max. door thickness | 24 mm |
Cup version | TH 52 |
Base | 12.5 mm |
Cup diameter | 35 mm |
Cup depth | 12.8 mm |
Type of installation | for screwing on |
Hinge surface finish | steel in obsidian black |
Drilling pattern | TH 52 x 5,5 mm |
Diameter of mounting hole | Centre punch Predrilled hole 2.5 mm Ø max. |
Integrated overlay adjustment | +2 mm / -2 mm |
Integrated depth adjustment | +3 mm / -2 mm |
Mounting hole | - |
Stay closed function | Yes |
Finish | in obsidian black |
EAN | 4023149651717 |
Order no. | 9091738 |
PU | 50 |
