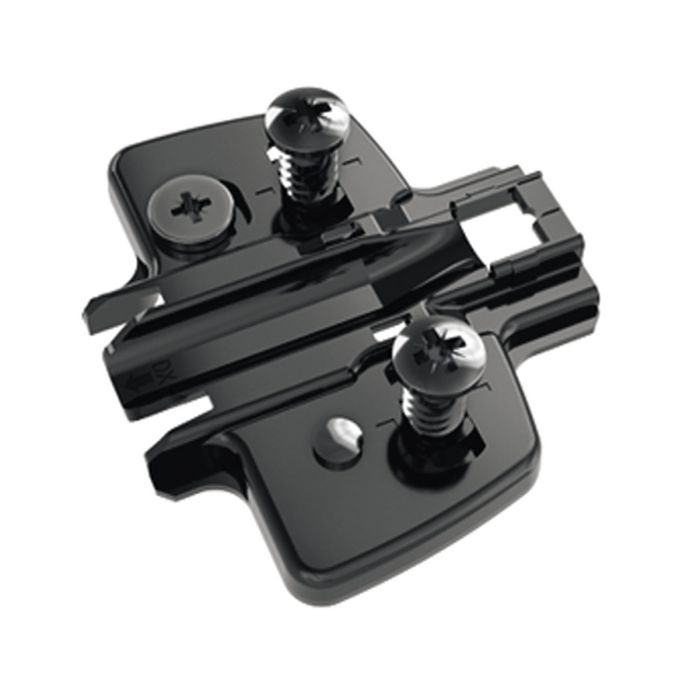

Hettich - Sensys Fast Assembly Concealed Hinge - Cross Mounting Plate - 1.5mm - Obsidian Black
Delivery for this item is 1-2 Working Days

Secure CheckoutEncrypted Checkout
Share
Description
- Cross mounting plate with Direct height adjustment
- For Sensys in obsidian black
- Quality classification under EN 15570, Level 3
- For Hole line 37 x 32 mm
- Installation with euro screws (for drilling ø 5 x 12 mm)
- Distance 1.5 mm
- Adjustment range + 2 mm / - 2 mm
- steel in obsidian black
Technical details
Cabinet body side panel thickness | 15 mm |
Type of installation mounting plates | with euro screws (ø 5 x 12) |
Mounting plate / Hole line distance LR / Hole spacing LA | Cross mounting plate / LR 37 / LA 32 |
Type of mounting plate | Cross mounting plate |
Hole line distance LR | 37 mm |
Height adjustment | Direct height adjustment |
Adjustment range | + 2 mm / - 2 mm |
Hole line | Hole line 37 x 32 mm |
Distance | 1.5 mm |
Hole spacing | 32 mm |
Material | steel |
Finish | in obsidian black |
Door mounting option | overlay half overlay inset |
Type of installation | with euro screws |
Mounting hole | ø 5 x 12 |
EAN | 4023149145674 |
Order no. | 9091804 |
PU | 50 |
