Trend Craftpro Worktop Jig

Currently Unavailable
SKU
KWJ700JIG
Our Lowest Price £121.97 Inc. VAT RRP £158.60 Inc. VAT

Delivery for this item is 2-3 Working Days

Secure CheckoutEncrypted Checkout

Share

Description

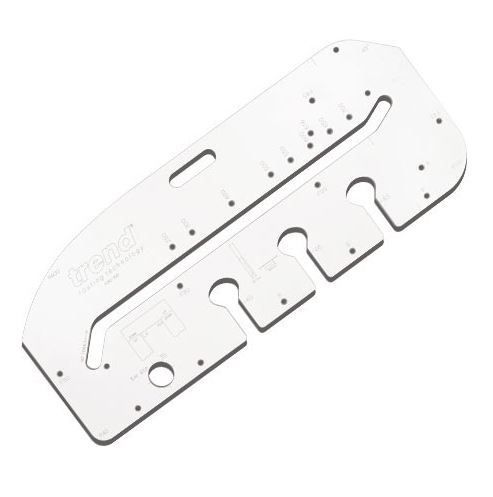

The Trend CraftPro Trade work top jig for up to 700mm worktops

  • Hard wearing solid laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
  • Left hand and right hand corners, 400mm radius peninsular joint, 45 degree end cut with slight radius, 45 degree trade corner solution for hob units, 100mm radius corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps.
  • Fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide worktops.
  • Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
  • Three open-ended bolt recesses (dog bone style) for 150mm bolts.
  • Engraved lines for short 65mm bolts and worktop cross-cut.
  • 10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
  • Engraved markings for identification of pin holes.
  • Pins made from ABS plastic for strength.
  • Jig requires:
  • A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
  • A template guide bush with 30mm outside diameter ref. GB30.
  • A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
  • Two clamps.



Sold in SINGLES.

Dimensions

Dimensions: 985mm x 390mm x 12mm
Weight: 5.4Kg
