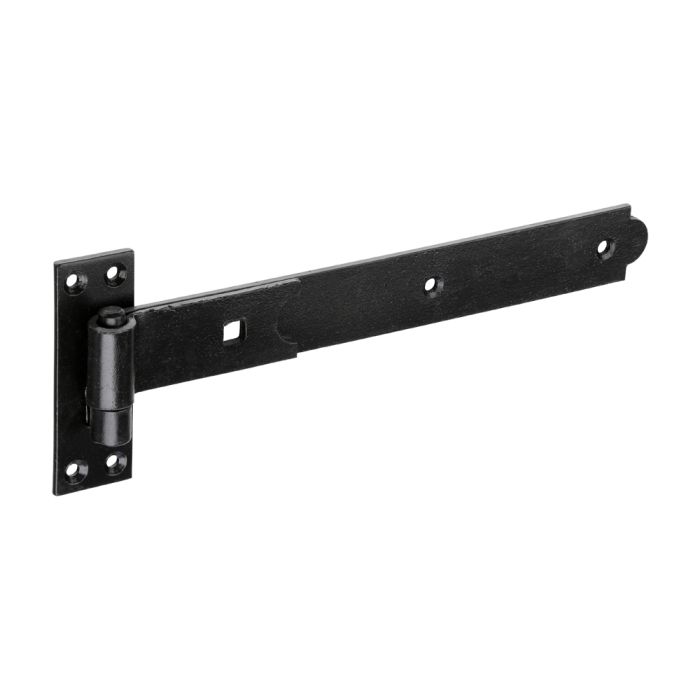

Timco Straight Hook & Band Hinge - Pair

From £16.18 Inc. VAT RRP £16.63 Inc. VAT

Delivery for this item is 2-3 Working Days

Secure CheckoutEncrypted Checkout

Description

Share

The TIMco Straight Hook and Band Hinge are designed for hanging the door or gate in front of the frame or post. They are ideal for heavy weight and high use doors, gates, garages and stables in domestic and agricultural settings. Depending on the weight and distribution of the gate the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate.

Please NOTE: Doors or gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping.

The hinge is available in epoxy black and hot dip galvanised finishes. The Epoxy black finish is ideal for use in areas that are only occasionally damp or wet, in rural and sheltered areas. The hot dipped galvanised finish is better for use in industrial areas with a moderate salt atmosphere.

Supplied in PAIRS complete with fixings.

Dimensions

HBS300:
Length: 300mm (12 Inch)
Width: 40mm
Thickness: 4.8mm
Pin Diameter: 12mm (1/2 Inch)
Hook Plate: 115 x 40mm
To Suit Gate Width: 600 - 900mm
No. Screw Holes: 12

HBS450:
Length: 450mm (18 Inch)
Width: 50mm
Thickness: 4.8mm
Pin Diameter: 16mm (5/8 Inch)
Hook Plate: 160 x 50mm
To Suit Gate Width: 900 - 1350mm
No. Screw Holes: 16

HBS600:
Length: 300mm (24 Inch)
Width: 50mm
Thickness: 5.4mm
Pin Diameter: 16mm (5/8 Inch)
Hook Plate: 160 x 50mm
To Suit Gate Width: 1200 - 1800mm
No. Screw Holes: 16
