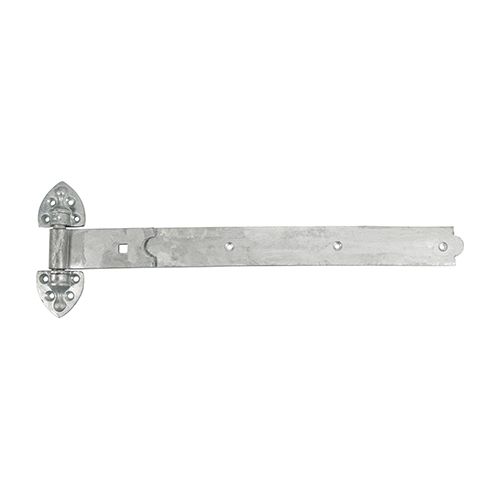

Timco Heavy Reversible Hinge

From £19.87 Inc. VAT RRP £20.44 Inc. VAT

Delivery for this item is 2-3 Working Days

Secure CheckoutEncrypted Checkout

Description

Share

The TIMco Heavy Reversible Hinges are ideal for flush mounted heavy gates, garage and stable doors in domestic, commercial and agricultural applications. The pins of the hinge mount into the hinge cups and prevent gates or doors from being lifted off.

Please NOTE: Doors or gates over 2130mm / 7ft height, should be fitted with a third hinge to prevent warping.

The hinge is available in epoxy black and hot dipped galvanised finishes. The Epoxy black finish is ideal for use in areas that are only occasionally damp or wet, in rural and sheltered areas. The hot dipped galvanised finish is better for use in industrial areas with a moderate salt atmosphere.

Hinges Suited to Door and Gate Widths:
HRH300: Door Width: 600 - 900mm
HRH450: Door Width: 900 - 1350mm
HRH600: Door Width: 1200 - 1800mm

Supplied complete with fixings.

Dimensions

HRH300: Length: 300mm / Width: 40mm / Thickness: 4.8mm / Pin Diameter: 12mm (1/2 Inch) / No. Screw Holes: 12

HRH450: Length: 450mm / Width: 50mm / Thickness: 4.8mm / Pin Diameter: 16mm (5/8 Inch) / No. Screw Holes: 14

HRH600: Length: 600mm / Width: 40mm / Thickness: 5.6mm / Pin Diameter: 16mm (5/8 Inch) / No. Screw Holes: 14

No. Bolt Holes (Pair): 2 / Carriage Bolt Dia. (mm): M10 / Screw Holes to Suit 5mm Screws.

Finish Options

Delivery

2 – 3 Working Days

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
