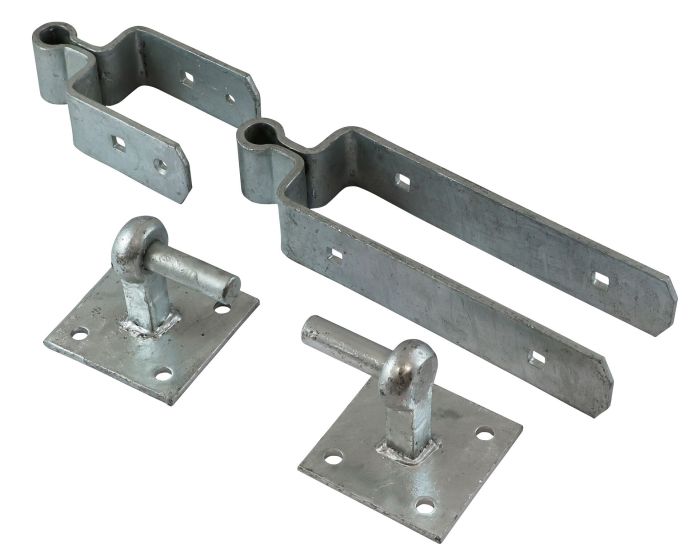

The TIMco Double Strap Hinge Set with Hook on Plate is a hot dipped galvanised hinge set that is part of the TIMco Taurus Fieldgate Hardware selection of Metal Gate Fittings. Designed for driveway gates, agricultural field gates, stables and garages, this heavy gate hardware is ideal for increased security. This collection includes hook and band hinges, field gate hinge sets, throwover gate loops, catches and chains.
For top corrosion resistance, they are available in a galvanised finish. The hot dipped galvanised finish is perfect for use in industrial areas with a moderate salt atmosphere. Although suitable for all customers, those in Scotland, Ireland and the South West will benefit most from the Galvanised finish, due to the susceptibility to high levels of corrosion in those areas.
The TIMco Double Strap Hinge Set with Hook on Plate is designed for use on field gates and drive way gates that are to be hung on timber, masonry or concrete posts. The hinge will provide excellent support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to fix firmly in place. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside to prevent unwanted removal of the gate.
Supplied as a Set. Fixings Include:
1 x Top Strap
1 x Bottom Strap
2 x Hook on Plates
2 or 3 x M10x95mm Galvanised Cup Square Bolts
Hex Nuts and Washers
8 x M10x65mm Galvanised Coach Screws
2 x 6.0x40mm TIMco exterior woodscrews.
Dimensions
Top Strap (TS): 600mm / 24 Inches
Bottom Strap (BS): 150mm / 6 Inches
Hook on Plate (HP): 100 x 100mm
Pin Diameter (PIN): 19mm / 3/4 Inch
To Suit Gate:
Width: 2700 - 3600mm / 9-12 Ft
Thickness: 75mm / 3 Inches
For Fixing:
No. of Coach Screws: 8
Coach Screw Diameter: M10
No. of Carriage Bolts: 3
Carriage Bolt Diameter: M10
