Description

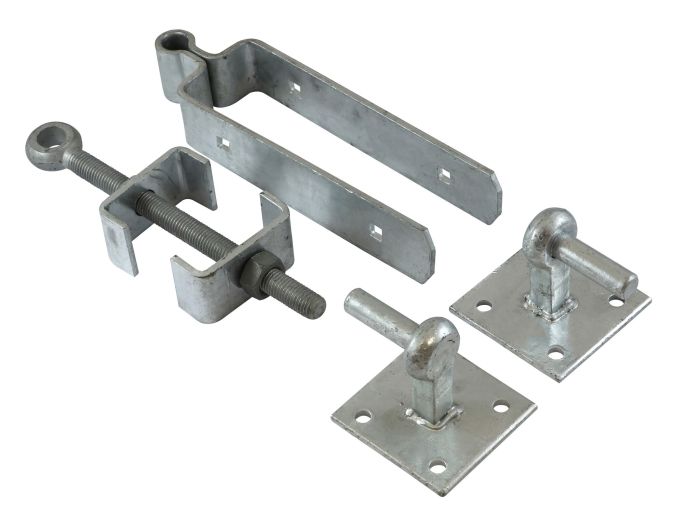

The TIMco Adjustable Fieldgate Hinge Set with Hook on Plate has been designed for use on field gates and drive way gates that are to be hung on timber, masonry or concrete posts. The hinge set will provide excellent support to the gate as the top band wraps around the gate and are fixed with cup square bolts to fix firmly in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates. Depending on the weight distribution of the gate the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate.
Part of the TIMco Taurus Fieldgate Hardware selection of Metal Gate Fittings. Designed for driveway gates, agricultural field gates, stables and garages, this heavy gate hardware is ideal for increased security. This collection includes hook and band hinges, field gate hinge sets, throwover gate loops, catches and chains. For top corrosion resistance, they are available in a galvanised finish. The hot dipped galvanised finish is perfect for use in industrial areas with a moderate salt atmosphere. Although suitable for all customers, those in Scotland, Ireland and the South West will benefit most from the Galvanised finish, due to the susceptibility to high levels of corrosion in those areas.
Supplied as a Set. Fixings Include:
1 x Top Strap
1 x Adjustable Bottom Fitting
2 x Hook on Plates
2 or 3 x M10x95mm Galvanised Cup Square Bolts
Hex Nut and Washer
8 x M10x65mm Galvanised Coach Screws
Dimensions
Top Strap (TS): 600mm / 24 Inches
Hook on Plate (HP): 100 x 100mm
Gate Eye (GE): M19 x 250mm
Heel Clip (HC): 86 x 50 x 32mm
Pin Diameter (PIN): 19mm / 3/4 Inch
To Suit Gates:
Width: 2700 - 3600mm / 9-12 Feet
Thickness: 75mm / 3 Inches
For Fixing:
No. of Coach Screws: 8
Coach Screw Diameter: M10
No. of Carriage Bolts: 3
Carriage Bolt Diameter: M10
