Description
The TIMco Adjustable Fieldgate Hinge Set has been designed for agricultural field gates and drive way gates that are to be hung on timber posts. The hinge will provide excellent support to the gate as the top band and bottom strap wrap around the gate and are fixed with cup square bolts to fix firmly in place. The bottom fitting clamps around the heel of the gate and is adjustable to allow for easy gate alignment after fitting. This is particularly useful when hanging pairs of gates.
The hook to bolt features a 9mm drilled hole for R clips or linch pins (not included) to be fitted to prevent the gate from being lifted off. The hooks to drive are barbed to prevent the gate from working loose. Depending on the weight distribution of the gate the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate.
Part of the TIMco Taurus Fieldgate Hardware selection of Metal Gate Fittings. Designed for driveway gates, agricultural field gates, stables and garages, this heavy gate hardware is ideal for increased security. This collection includes hook and band hinges, field gate hinge sets, throwover gate loops, catches and chains. For top corrosion resistance, they are available in a galvanised finish. The hot dipped galvanised finish is perfect for use in industrial areas with a moderate salt atmosphere. Although suitable for all customers, those in Scotland, Ireland and the South West will benefit most from the Galvanised finish, due to the susceptibility to high levels of corrosion in those areas.

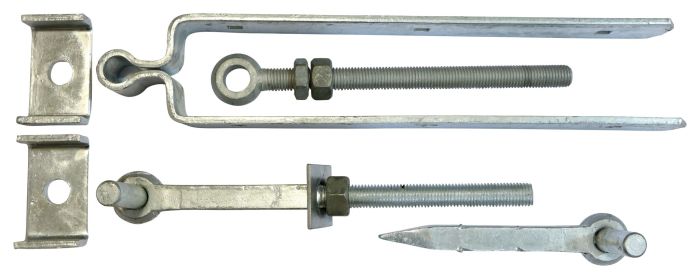

Supplied as a Set. Fixings Include:
1 x Top Strap
1 x Adjustable Bottom Fitting
Gate Hook to Drive
1 x Hook to Bolt
2 or 3 x M10x95mm Galvanised Cup Square Bolts
Hex Nut and Washer
Dimensions
Top Strap (TS): 600mm / 24 Inches
Hook to Bolt (HB): M20 x 350mm
Gate Eye (GE): M19 x 250mm
Heel Clip (HC): 86 x 50 32mm
Hook to Drive (HD): 215 x 22mm
Pin Diameter (PIN): 19mm / 3/4 Inch
To Suit Gates:
Width: 2700 - 3600mm / 9-12 Feet
Thickness: 75mm / 3 Inches
For Fixing:
No. of Carriage Bolts: 3
Carriage Bolt Diameter: M10
