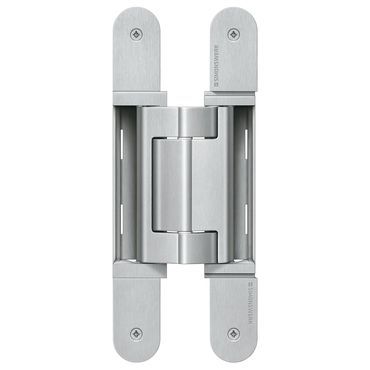

Simonswerk Tectus Te 626 3d A8 Concealed Hinge - Stainless Steel Finish

SKU
TE626.3D.A8.040
£1,014.38 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

The Simonswerk Tectus TE 626 3D A8 Concealed Hinge for un-rebated high-performance heavy-duty doors with claddings up to 8 mm on both sides, for doors up to 300kg in weight.

Simonswerk aim for perfection in all areas right from the outset and manufacture top quality specialist Tectus hinges. Superb range of hinges for domestic, commercial and fire doors.

Simonswerk Tectus TE 626 3D A8 Concealed Hinge Product Features:

  • Material stainless steel.
  • Cladding up to 8 mm.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For un-rebated heavy-duty doors.
  • Sideways closed hinge body for a homogeneous mortise appearance.
  • With comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.

Suitable for:

  • Type of door leaf: Timber
  • Unrebated
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Note:

  • The load capacity mentioned above refers to two hinges per door leaf (1 x 2 m).
  • Also the load capacities of the respective combined receiver have to be taken into consideration.
  • With an opening position of 180° the door may have to be fixed additionally.

Installation tools

  • Universal milling frame
  • Template 5 250659 5 - Step 1
  • Template 5 250688 5 - Step 3 (without cladding)
  • Template 5 250689 5 - Step 2
  • Template 5 250690 5 - Step 3

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 626 3D A8.

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 300,0 kg
Overall length 240,0 mm
Width (door part) 32,0/37,0 mm
Width (frame part) 32,0/37,0 mm
Cutter diameter 24,0 mm
Opening angle 180°
