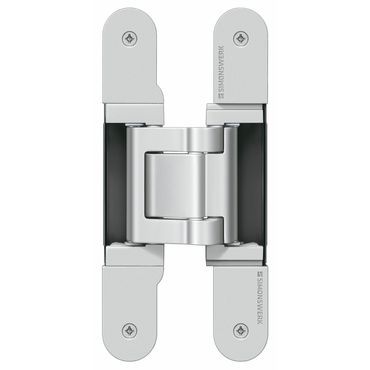

Simonswerk Tectus Te 541 3d Fvz Concealed Hinge

From £177.02 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

The Simonswerk Tectus TE 541 3D FVZ Concealed Hinge is designed for un-rebated heavy-duty and interior doors with recessed frame facings, the hinges are available in brass, bronze, chrome, nickel and stainless steel finishes.

With Tectus FVZ, a design where the frame part is offset to the sash part, it is possible to integrate a door with a fully concealed hinge into the surrounding wall without any visible frame. The Tectus 541 3D FVZ model version enables the frame facing to be set back by 14 mm, resulting in even more architectural options for linear interior designs.

Product characteristics:

    • FVZ = for a 14.0-mm recessed frame facing
    • Fully concealed hinge system
    • For wood, steel and aluminium frames
    • For un-rebated heavy-duty and functional doors
    • Maintenance-free slide-bearing technology
    • Convenient 3D adjustment
    • Side-sealed hinge housing
    • Load-capacity of up to 100 kg

The alternative TECTUS TE 311 3D FVZ model version enables frame facings to be recessed by 12 mm and is suitable for milled recesses in the case of doors 40 mm and 44 mm thick. This model version has a load capacity of 60 kg.

Suitable for:

  • Timber door leaf
  • Un-rebated doors
  • Door Frames: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Fire resistance
  • Smoke resistance
  • Soundproof

Note:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
  • With an opening position of 180° the door may have to be fixed additionally.

Installation tools:

  • Universal milling frame
  • Template 5 250942 5 - Step 1 Frame, Door.
  • Template 5 250943 5 - Step 2, Frame, Door.
  • Template 5 250682 5 - Step 3, Frame.
  • Template 5 250944 5 - Step 3, Door.

Combinations:

  • TE 541 3D FVZ FZ/1 - fixing plate TECTUS, for casing frames.
  • TE 541 3D FVZ SZ - Receiver TECTUS, for steel frames.
  • TE 541 3D FVZ ST - Receiver TECTUS, for steel doors.

Simonswerk Product Data Sheet and Fitting Instructions for TE 541 3D FVZ

Simonswerk instructional video for fitting Tectus Hinges

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 100,0 kg
Overall length 185,0 mm
Width (door part) 28,0/32,0 mm
Width (frame part) 28,0/33,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Finish Options

Delivery

1 – 2 Weeks

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
