Simonswerk Tectus Te 527 3d Concealed Hinge - Stainless Steel Effect Finish

SKU
TE527.3D.126
£243.50 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

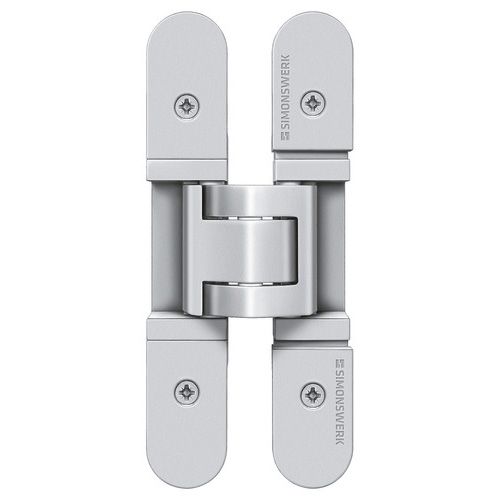

The Simonswerk Tectus TE 527 3D Concealed Hinge is made of solid steel and designed as completely concealed, for use on unrebated heavy-duty doors with timber, steel and aluminium frames, up to 120kg in weight. The hinges have comfortable 3D adjustment, load capacity up to 120 kg, opening angle up to 180°, overall length 155 mm, right hand and left hand applicable, maintenance-free slide bearings.

Simonswerk Tectus TE 527 3D Concealed Hinge Product features:

  • Material: steel.
  • Completely concealed hinge system.
  • For timber, steel or aluminium frames.
  • For unrebated heavy-duty doors.
  • 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm).
  • Maintenance-free slide bearings.
  • Load capacity: 120,0 kg
  • Opening angle: 180°

Suitable for:

  • Timber Door Leaf
  • Unrebated Doors
  • Type of frame: Aluminium frame, blind frame, block frame, casing frame, steel frame.

Function range:

  • Burglar resistance
  • Fire resistance
  • Smoke resistance
  • Soundproof

Please Note:

  • The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m)
  • With an opening position of 180° the door may have to be fixed additionally.

Please see Simonswerk instructional video for fitting Tectus Hinges.

Please see Simonswerk Product Data Sheet and Fitting Instructions for TE 527 3D.

Installation tools

  • Universal milling frame
  • Drilling jig TECTUS TE 526/527 3D - block frame and blind frame
  • Template 5 250547 6 - frame / door

Combinations

  • TE 526/527 3D FZ/1 - fixing plate TECTUS, for casing frames
  • TE 526/527 3D SZ - receiver TECTUS, for steel frames
  • TE 526/527 3D ST - receiver TECTUS, for steel doors

Supplied in SINGLES complete with fixings

Dimensions

Attributes Value
Load capacity 120,0 kg
Overall length 155,0 mm
Width (door part) 26,0 mm
Width (frame part) 26,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Delivery

1 – 2 Weeks

NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
