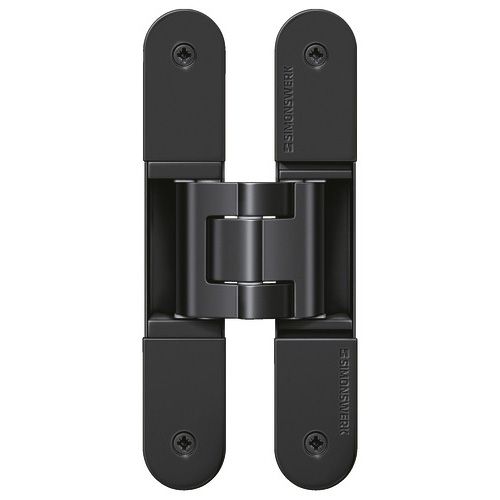

Simonswerk Tectus Te 340 3d Concealed Hinge

From £92.90 Inc. VAT

Delivery for this item is 1-2 Weeks

Secure CheckoutEncrypted Checkout

Description

Share

Simonswerk Tectus TE 340 3D Concealed Hinge, a world-class hinge system with cutting-edge energy transfer capability for for unrebated and rebated flush residential doors.

The Simonswerk TECTUS hinges range is completely concealed hinge system. In the words of the Tectus designers; "Making something invisible is also design!" There is a certain appeal in designing items in such a way that their actual value is initially in the background, thereby giving space to other elements. Flush mounting is a stylistic principle that exudes minimalism and involves precise technology and perfection.

In this way, the completely concealed hinge system TECTUS enables unrebated doors to be completely flush and therefore integrated into rooms designed with straight lines. When closed the door will remain visible, with an invisible hinge system. TECTUS hinges carry load capacities up to 300 kg, enables an opening angle of 180 degrees and can be used on timber, steel and aluminium frames. Three-dimensional adjustment and maintenance-free slide bearing technology are used for high-quality interior doors and functional heavy-duty doors.

Simonswerk TE340 3D Tectus Hinge Product features:

  • completely concealed hinge system

  • for timber, steel or aluminium frames

  • for unrebated residential and heavy-duty doors

  • sideways closed hinge body for a homogeneous mortise appearance

  • with comfortable 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,0 mm)

  • maintenance-free slide bearings

Technical details:

Attributes
Load capacity 80,0 kg
Overall length 160,0 mm
Width (door part) 28,0 mm
Width (frame part) 28,0 mm
Cutter diameter 24,0 mm
Opening angle 180°

Suitable for:

Types
Type of door leaf Timber
Rebate unrebated
Type of frame aluminium frame, blind frame, block frame, casing frame, steel frame

 Note:

The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m). With an opening position of 180° the door may have to be fixed additionally.

Supplied in SINGLES complete with fixings

Please see Simonswerk instructional video for fitting Tectus Hinges.

Dimensions

See line drawings in additional images.
