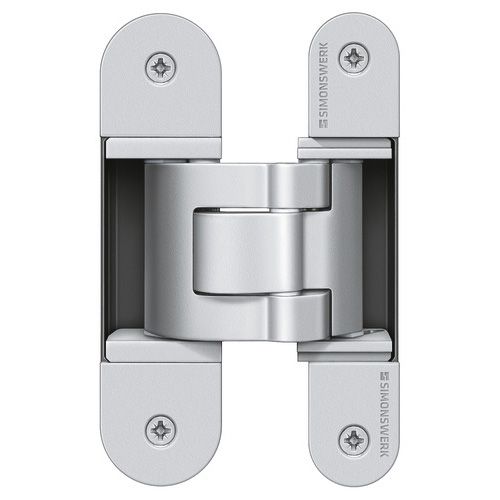

The Simonswerk Tectus TE 311 3D FVZ 44 Concealed Hinge, a world-class hinge system for unrebated residential doors with recessed frame facings
The Simonswerk TECTUS hinges range is completely concealed hinge system. In the words of the Tectus designers; "Making something invisible is also design!" There is a certain appeal in designing items in such a way that their actual value is initially in the background, thereby giving space to other elements. Flush mounting is a stylistic principle that exudes minimalism and involves precise technology and perfection.
Simonswerk TE311 Tectus Hinge Product features:
- completely concealed hinge system
- for timber, steel or aluminium frames
- for unrebated and rebated flush residential doors
- sideways closed hinge body for a homogeneous mortise appearance
- 3D adjustment (side +/- 3,0 mm, height +/- 3,0 mm, compression +/- 1,5 mm)
- maintenance-free slide bearings
Technical details:
| Load capacity | 60,0 kg | |
| Overall length | 155,0 mm | |
| Width (door part) | 18,0 mm | |
| Width (frame part) | 21,0 mm | |
| Cutter diameter | 16,0 mm | |
| Opening angle | 180° | |
Suitable for:
| Type of door leaf | Timber |
| Rebate | Rebated flush, unrebated |
| Type of frame | aluminium frame, blind frame, block frame, casing frame, steel frame |
Note:
- The load capacity mentioned above refers to the use of 2 hinges per door leaf (1 x 2 m).
- With an opening position of 180° the door may have to be fixed additionally.
Installation tools
- Universal milling frame
- Template 5 251100 6 - frame
- Template 5 251102 6 - door leaf
Combinations
- TE 311 3D FVZ FZ/1 - fixing plate TECTUS, for casing frames
- TE 311 3D FVZ SZ - receiver TECTUS, for steel frames
Supplied in SINGLES complete with fixings
Delivery
1 – 2 Weeks
