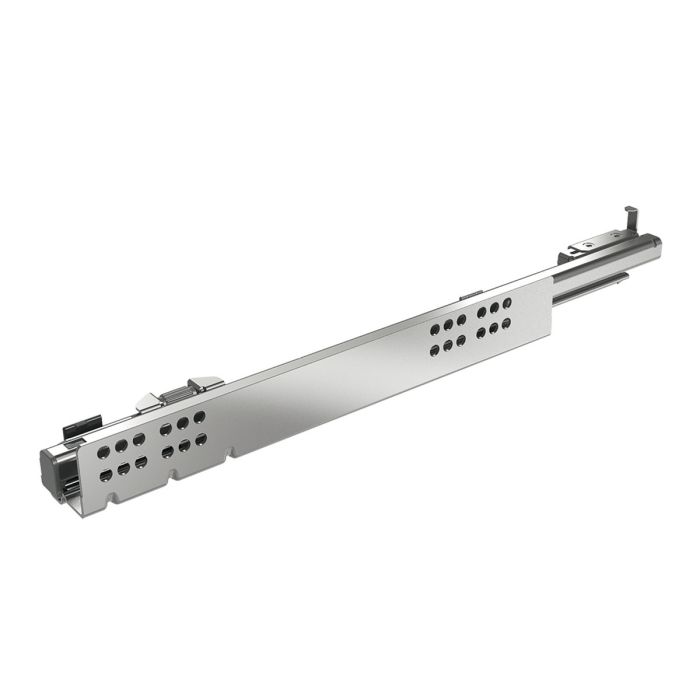

Hettich Quadro 4D V6 Soft Close 500mm Length Drawer Runner

Description

Upgrade your cabinetry with the Hettich Quadro 4D V6 Soft Close Drawer Runner, engineered for smooth, silent operation and advanced 4-way adjustability. With a 500mm nominal length and a 30kg load capacity, this full-extension drawer runner is ideal for modern kitchens, offering superior functionality and a premium finish.

Silent Soft-Close Performance
Equipped with Hettich’s integrated Silent System, the Quadro 4D V6 ensures gentle, noise-free closing. The internal cushioning mechanism absorbs movement, protecting your cabinetry while enhancing user comfort.

4-Way Tool-Free Adjustment
Fine-tune your drawer alignment effortlessly:

• Height adjustment: up to +2 mm

• Side adjustment: ±1.5 mm (for drawer sides up to 15 mm thick)

• Depth adjustment: ±2 mm

• Tilt adjustment for perfect vertical alignment

Built to Last
Manufactured from galvanised steel, the runner delivers long-lasting performance and excellent vertical and lateral stability via precision steel ball bearings. Maintenance is minimal — the self-cleaning tracks require no lubrication.

What’s Included:

• 1 x Side-mounted runner (Left or Right side)

• Fixings included

Note: Front clips and rear tilt clips are not included – please order separately (HE9247529).

Technical Specifications:

• Nominal length: 500mm

• Load capacity: 30kg (certified to EN 15338, Level 3)

• Full-extension runner

• Mounting side: Left or Right

• Comparable to Blum Movento runners

• Also available in 300mm, 350mm, 400mm, 450mm, and 550mm lengths
