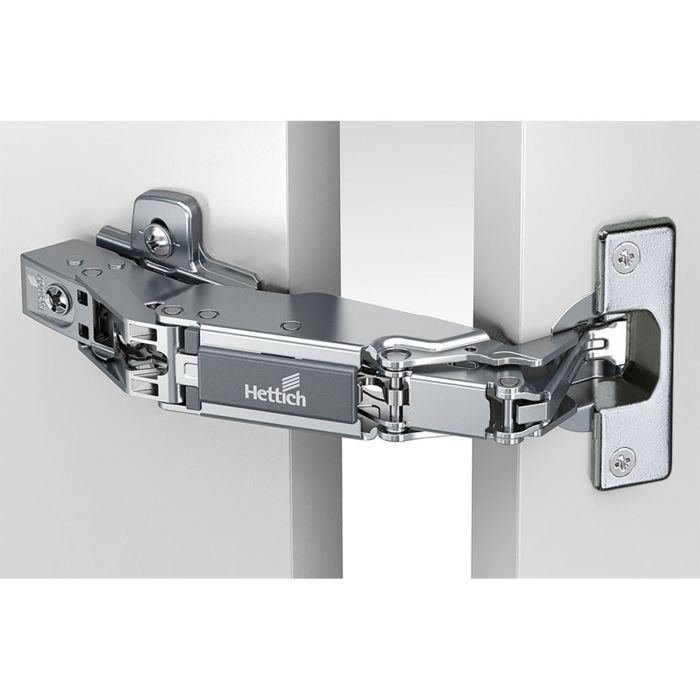

Hettich Intermat 8657 Overlay Door Hinge

Description

The Hettich Intermat 8657 Overlay Door Hinge is a concealed hinge designed for overlay doors with a thickness of 15–24mm. Offering a 165° opening angle (adjustable to 130° via integrated limiter), this hinge allows for wide access while maintaining a smooth, controlled motion.

It features a 35mm cup diameter and 11.7mm cup depth, making it compatible with standard cabinet hinge cup bores. Designed for use with older Intermat systems, this hinge allows snap-on attachment for easy installation and includes integrated overlay and depth adjustment for precision alignment.

Key Features:

• 165° opening angle (adjustable to 130° via screw limiter)

• 35mm cup diameter, 11.7mm cup depth

• For overlay cabinet doors 15–24mm thick

• Concealed hinge design for a clean finish

• Integrated overlay and depth adjustment

• Snap-on mounting system

• Soft-close capability (requires Silent System clip-on element – sold separately)

• Sold individually (mount plate and cover cap not included)

This is a great choice for kitchen or furniture projects requiring high-performance, wide-angle hinges compatible with legacy Hettich Intermat fittings.
