Description
The Eclipse Ultimate DIN Bathroom Lock is engineered for demanding commercial and residential applications where durability, security and fire performance are essential. Certified to BS EN 12209 and Certifire standards, it features premium 304 stainless steel internal components, a double throw deadbolt and outstanding fire resistance of up to FD120 for timber doors and FD240 for steel doors when installed in accordance with fire door requirements.
Key Features:

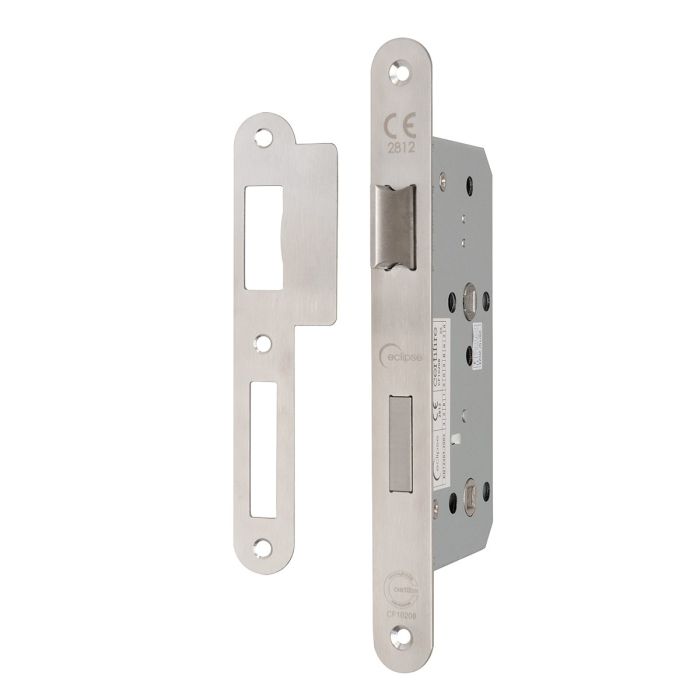

- Eclipse Ultimate DIN bathroom lock
- CE 2812 certified
- Certifire approved (CF 10208)
- Certified to BS EN 12209 performance standard
- Tested to 200,000 operating cycles at 120N
- Fire rated to BS EN 1634:
- FD30, FD60, FD90 and FD120 for timber doors
- FD240 for steel doors
- Premium 304 stainless steel forend, latch bolt, deadbolt, follower and strike plate
- Double throw deadbolt for enhanced security
- Available with 55mm or 60mm backset
- Available with 22mm or 24mm forend
- Suitable for commercial, healthcare, education, hospitality and public buildings
- Intumescent protection must be used to achieve fire door compliance
Dimensions
Backset 60mm, Forend 22mm
Backset 55mm, Forend 24mm
