Description

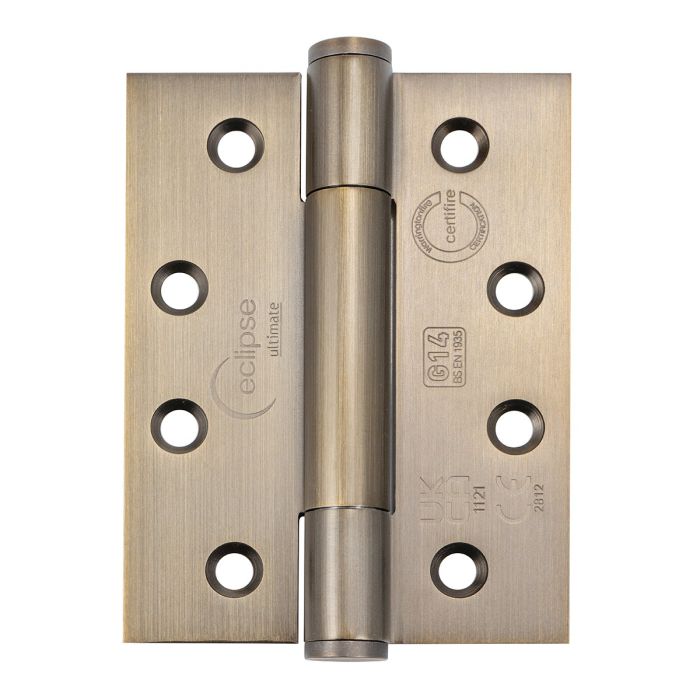

The Eclipse 102 x 76mm (4" x 3") Grade 14 Stainless Steel Concealed Bearing Hinges are engineered for demanding commercial and public building applications. Featuring concealed bearings for smooth, low-maintenance operation, these hinges are tested to the highest performance standards and are suitable for heavy-duty timber and steel fire doors. CE, UKCA and Certifire approved, they provide outstanding durability for doors weighing up to 160kg.
Key Features:
- Eclipse Grade 14 concealed bearing hinges
- Manufactured from stainless steel
- Size: 102 x 76mm (4" x 3")
- Concealed bearing design for smooth, reliable operation
- BS EN 1935 performance tested to Grade 14
- Tested to 200,000 operating cycles
- Suitable for doors up to 160kg total door mass
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 1121, UKCA 2812 and Certifire approved
- 10 gauge countersunk fixing holes
- Supplied with 10 × 1¼" fully threaded screws
- Pack quantity: 2 hinges (1 pair)
Dimensions
102x76x3mm
