Description

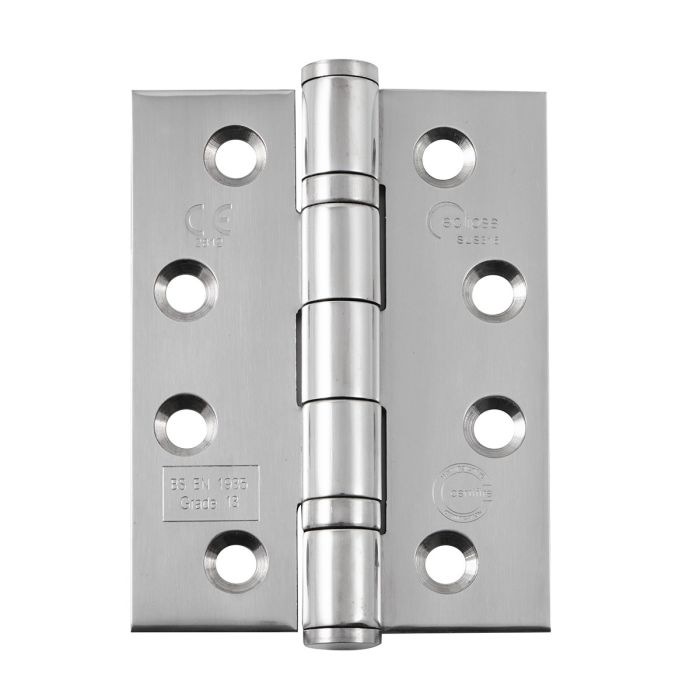

The Eclipse 102 x 76mm (4" x 3") Grade 13 Stainless Steel Ball Bearing Hinges are engineered for demanding commercial and public building applications. Manufactured from premium SUS 316 stainless steel, they provide superior corrosion resistance and smooth, long-lasting operation thanks to their precision ball bearing construction. Certified to the highest European performance and fire safety standards, they are suitable for heavy-duty timber and steel fire doors.
Key Features:
- Eclipse Grade 13 ball bearing hinges
- Manufactured from premium SUS 316 stainless steel
- Size: 102 x 76 x 3mm (4" x 3")
- Precision ball bearing construction for smooth, reliable operation
- BS EN 1935 performance tested to Grade 13
- Tested to 200,000 operating cycles
- Suitable for doors up to 120kg total door mass
- BS EN 1634 fire rated:
- FD30, FD60, FD90 and FD120 timber fire doors
- FD240 steel fire doors
- CE 2812, UKCA 1121 and Certifire CF336 approved
- 12 gauge countersunk fixing holes
- Supplied with 12 × 1½" Pozi Drive threaded screws (¾" thread)
- Pack quantity: 2 hinges (1 pair)
Dimensions
102x76x3mm
Delivery
2-3 Day Delivery.
NOTE: If your order contains a mix of products they will be despatched altogether. The delivery will be determined by the product with the longest delivery time. For more info see delivery page.
