Description

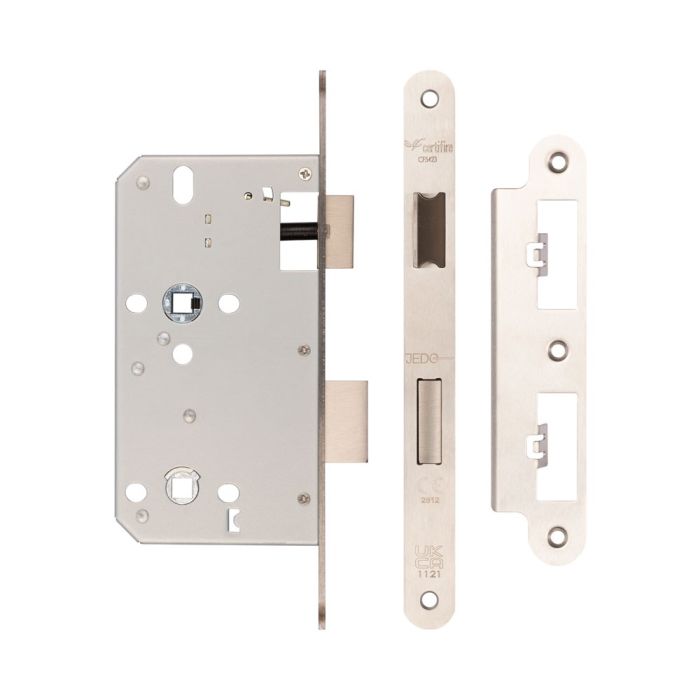

The Frelan Jedo JL‑DB60 DIN Bathroom Lock is a specification‑grade stainless steel lock designed for high‑use commercial and residential washrooms. Constructed from durable Grade 304 stainless steel with a satin finish, it offers excellent corrosion resistance (Grade 3) and long‑term reliability. Fully Certifire approved and FD30/60 fire rated, it complies with BS EN 12209 and carries both UKCA and CE markings.
The JL‑DB60 features a sprung latch for smooth operation and is available with either a square (JL‑DB60SSS) or radius (JL‑DB60RSSS) forend, making it suitable for both new installations and refurbishment projects. With a 60mm backset, stainless steel fixings included, and a 15‑year mechanical warranty, it is designed to deliver dependable and safe performance in high‑traffic environments.
Key features:
- Material: Grade 304 stainless steel
- Finish: Satin stainless steel
- Forend options:
- Square — JL‑DB60SSS
- Radius — JL‑DB60RSSS
- Backset: 60mm
- Sprung: Yes
- Fire rating: FD30/60
- Certifire approved
- Standard: BS EN 12209
- UKCA / CE marked
- Corrosion grade: 3
- Suitable for: Internal / external — residential & commercial
- Suitable door thickness: 35–54mm
- Backplate dimension: 235mm
- Overall size: 165 × 90 mm
- Fixings included: 4 × stainless steel screws
- Mechanical warranty: 15 years
Dimensions
Case Height: 235mm
Backset: 60mm
Forend Width: 22mm
Forend Height: 145mm
Overall Size: 165 x 90mm
