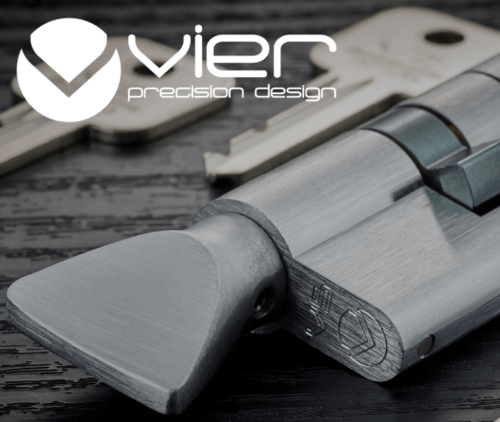

Zoo Hardware's latest Collection from Vier Precision Design Architectural Hardware has an outstanding range of Cylinders in 5-Pin, 6-Pin and 10-Pin versions.

The Vier range is a high quality solution to meet the exacting needs of Architects, Specifiers, Contractors and Clients. The Vier collection of locks and accessories compliment a wide range of construction developments.

The 5-Pin Cylinders are ideal for internal door lock applications.

We currently supply 5 Pin Single Euro Profile Cylinders, 5 Pin Double Euro Profile Cylinders, 5 Pin Double Offset Euro Profile Cylinders, 5 Pin Euro Cylinder and Turns and 5 Pin Euro Offset Cylinder and Turns.

5 Pin Single Euro Profile Cylinders: They are available in 40mm to 70mm sizes and they are anti-drill and anti-pick accredited for added security.

5 Pin Double Euro Profile Cylinders: They are available in 60mm to 100mm sizes, they are anti-drill and anti-pick accredited for added security.

5 Pin Double Offset Euro Profile Cylinders: Available in 30mm to 70mm sizes, they are anti-drill and anti-pick accredited for added security.

5 Pin Euro Cylinder and Turns: In 60mm to 100mm sizes, designed to lock and un-lock the door, the key is used from outside and turned from inside.

5 Pin Euro Offset Cylinder and Turns: Available in a wide range of offset sizes. NOTE - Offset measurements are quoted with Outside Measurement first and Inside Measurement (ie. Turn side) second.

All of these 5-pin cylinders adhere to BS EN 1303 and BS EN 1634-1 standards and they are Fire Door 30 / 60 rated which means they are Certifire accredited.

Vier Precision Design 6 Pin Single Euro Profile Cylinders: Available in sizes from 46mm to 55mm.

Vier Precision Design 6 Pin Double Euro Profile Cylinders: Available in sizes from 70mm to 100mm

Vier Precision Design 6 Pin Double Offset Euro Profile Cylinders: The offset feature is to account for situations in which the lock inside the door is offset from centre, very common on doors such as uPVC doors. Please see the Cylinder Lock Measuring Instructions below to learn how to measure your door correctly.

Vier Precision Design 6 Pin Euro Profile Cylinder & Turn: Available in sizes from 70mm to 100mm, these cylinders feature a thumbturn on one side for quick and easy locking from the inside, eliminating the need to use the key from within.

All of these Euro Cylinders are all adhere to TS007 Kitemarked security standards for protective door furniture to withstand the common burglary techniques of drilling, snapping, plug extraction, picking and bumping. They also have a 'sacrificial line', which is an intrinsically designed weak point designed to snap off in case of attack - sacrificing the cylinder, but denying access to your home by the attacker.

Vier Precision Design 6 Pin Standard Threaded Rim Cylinder: architectural quality cylinder lock. Suitable for all major branded Rim Nightlatches,

All of the 6-Pin cylinder locks are anti-drill and anti-pick accredited for added security. The locking cylinders adhere to BS EN 1303 and BS EN 1634-1 regulations, FD30/60 for full Fire Door Certifire approval. These regulations assure performance, quality, reliability and traceability of fire protection products. Recognised by regulatory authorities worldwide, it is an internationally respected mark of fire safety and one of the most authoritative in the industry.

Architectural quality cylinder locks that are fully insurance rated with British Standard Kitemark KM602227meaning that they comply to all regulations required by UK home insurance companies.

Available in Polished Brass, Polished Chrome and Satin Chrome finishes.

Vier Precision Design 10 Pin Single Euro Profile Cylinders: These are available in sizes from 42mm to 55mm

Vier Precision Design 10 Pin Double Euro Profile Cylinders: are available in sizes from 64mm to 100mm

Vier Precision Design 10 Pin Double Offset Euro Profile Cylinders: The offset feature is to account for situations in which the lock inside the door is offset from the centre, very common on doors such as uPVC doors. Please see the Cylinder Lock Measuring Instructions below to learn how to measure your door correctly.

Vier Precision Design 10 Pin Euro Profile Cylinder & Turn: Features a thumbturn on one side for quick and easy locking from the inside, eliminating the need to use the key from within. These Locking Cylinders are available in sizes from 64mm to 100mm

The 10-Pin cylinder locks by Vier Precision Design from Zoo Hardware are Architectural quality cylinder locks. These Locking Cylinders are available in Polished Brass, Polished Chrome and Satin Chrome finishes. They are anti-drill and anti-pick accredited for added security. The locking cylinders adhere to BS EN 1303 and BS EN 1634-1 regulations, FD30/60 for full Fire Door Certifire approval. These regulations assure performance, quality, reliability and traceability of fire protection products. Recognised by regulatory authorities worldwide, it is an internationally respected mark of fire safety and one of the most authoritative in the industry.

The Vier Precision Design V5, V6 and V10 Security range from Zoo Hardware comprises single, double and turn cylinders with euro and oval bodies. The cylinder locks are keyed to differ, keyed-alike or master-keyed versions.

For Keyed-Alike and Master-Key System Options please call our sales team on 01228 516 516 to discuss your requirements.
