Pull Handle Back-to-Back Fixings - Fitting Guide

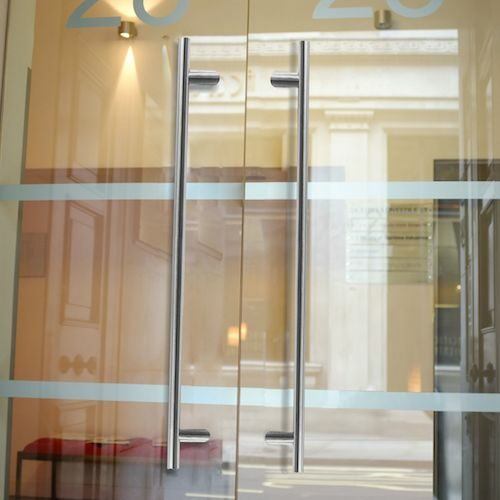

Many of the Eurospec Pull Handles are suitable to be fitted as a back-to-back pair so that the same handle is on each side of the door.  To create the correct fixing for the handles the Eurospec Back-to-back Fixing Kit is required and provides a secure and invisible fixing that gives a professional look and finish to the door.

  • Suitable for timber and glass doors from 12 to 55mm.
  • Converts 2 bolt fix pull handles into pairs.
  • More secure fixings.
  • Suitable for Eurospec and Steelworx handles and other non brand related handles.

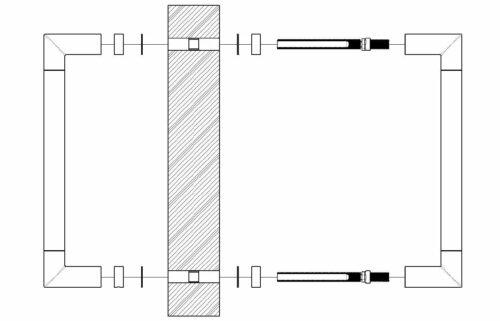

Back to Back Door Handles

Here we list the fitting instructions for how to use the back-to-back fixing kit correctly;

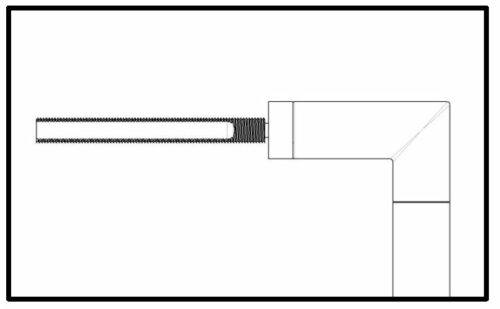

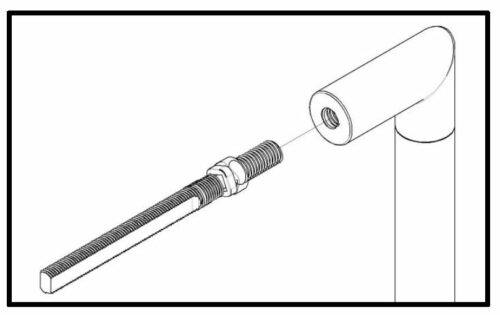

1. Securely fasten the short screw end of the 2 fixing bolts onto both ends of the Tubular Handle fixing points.

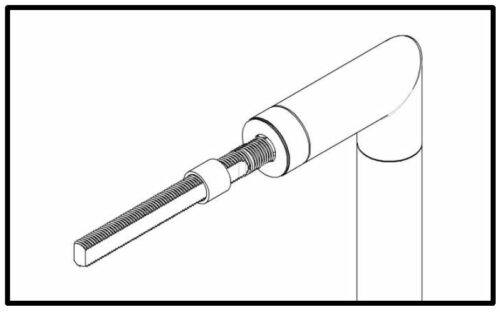

2. Slide the solid bushes (with the round hole) over the fixing bolts. Bushes should be the same diameter as the tubular handle or tubular legs of T pull handle.

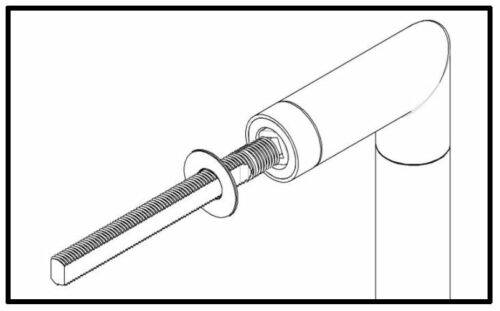

3. Slide one plastic washer over each of the fixing bolts, essential when fitting to glass doors (optional when fitting to timber doors).

4. Slide the plastic sleeve over both fixing bolts. These are essential when fitting to glass doors, not required for timber doors.

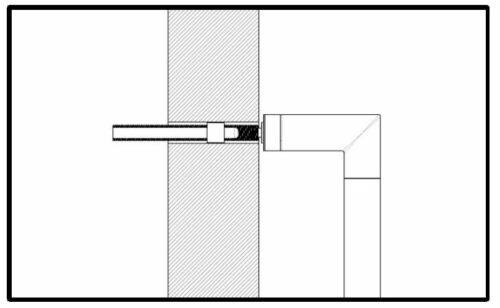

5. Insert the assemblies through the prepared holes in the door, (as shown in the pull handle instructions). As the fitting on this side cannot be removed, fit to the external side of the door if required.

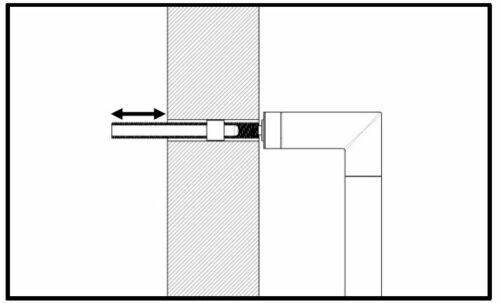

6. If the projection of the bolt from the face of the door is more than 30mm, it may be necessary to shorten the bolts.

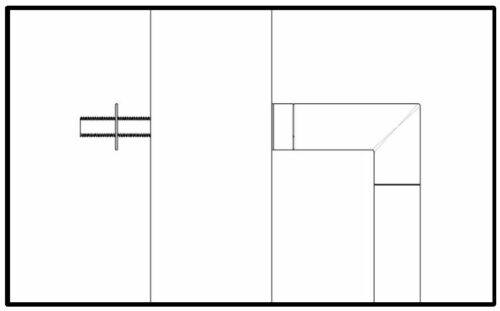

7. Slide on the plastic washer, essential when fitting to glass doors, optional for timber doors.

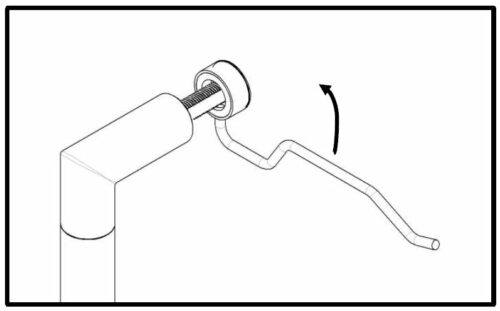

8. Insert the top projecting screw into the tubular handle and using the tool insert into the small hole in the bush, turn until the bolt is engaged into the pull handle.
Repeat for bottom fixing.

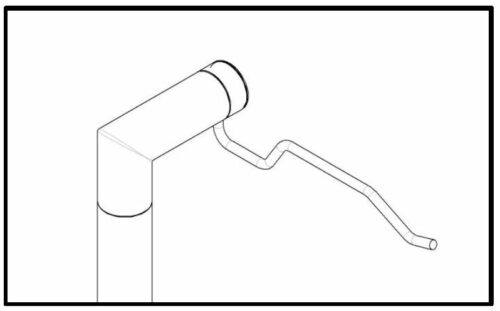

9. Continue to secure the pull handle to the door face by tightening the bush progressively top and bottom until the pull handles are securely fastened to the door.

Back to Back Handles
